5 inch 1080×1080 resolution MIPI interface IPS round lcd panel at compete price

Short Description:

5 inch tft lcd 1080×1080 resolution MIPI interface IPS round lcd module at competed price Type: Round TFT LCD, TFT Display Size: 5 inch Supplier Type: Manufacturer Place of Origin:Guangdong, China Model Number:ES050YMM Brand Name:Chance Size: 5.0 Display mode: Normal Black Viewing Direction: IPS Luminance: 400 (min) Interface: MIPI Driving IC: HX8399-C Number of dots: 1080*1080 LCM dimension: 129.808X133.258 Active area: 127.008X127.008 Parameters ...


Product Detail

5 inch tft lcd 1080×1080 resolution MIPI interface IPS round lcd module at competed price

Type: Round TFT LCD, TFT
Display Size: 5 inch
Supplier Type: Manufacturer
Place of Origin:Guangdong, China
Model Number:ES050YMM
Brand Name:Chance
Size: 5.0
Display mode: Normal Black
Viewing Direction: IPS
Luminance: 400 (min)
Interface: MIPI
Driving IC: HX8399-C
Number of dots: 1080*1080
LCM dimension: 129.808X133.258
Active area: 127.008X127.008

Parameters

Item

Specification
Display Mode

Normally Black

Display Technology

α-Si TFT active matrix

Outline Dimension

129.808(H) X 133.258 mm

Active Area 127.008 (H) X 127.008 (V) mm
Resolution 1080X(RGB)X1080dots
Pixel Pitch 0.1176X0.1176

Pixel Configuration

RGB Stripe

Backlight

White LED

Luminance

(400)(Typ.) cd/m2

Surface Treatment

Anti-Glare

Driver IC

HX8399-C
Viewing Direction

IPS

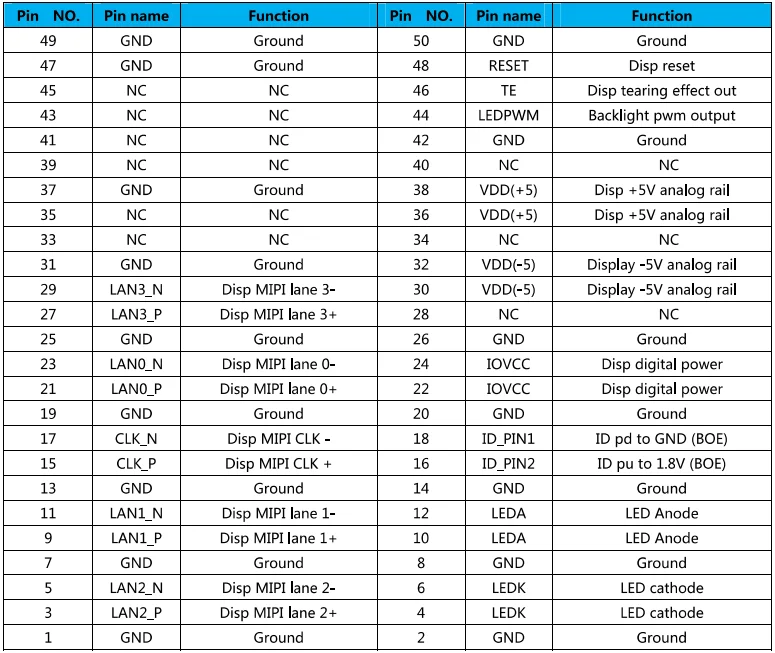

Pin

Drawing





Real Shot







5 inch tft lcd 1080x1080 resolution MIPI interface IPS round lcd module at competed price

5 inch tft lcd 1080x1080 resolution MIPI interface IPS round lcd module at competed price

Production Flow

5 inch tft lcd 1080x1080 resolution MIPI interface IPS round lcd module at competed price



Products Advantage

1. Stock for selling ,no MOQ

2.Competed price

3.Easy to do testing





Equipments

5 inch tft lcd 1080x1080 resolution MIPI interface IPS round lcd module at competed price

Customer Visiting

5 inch tft lcd 1080x1080 resolution MIPI interface IPS round lcd module at competed price
