3.0 inch 480*480 RGB+SPI interface round Active area LCD Display

Short Description:

Quick Details Display Size: 3.0 Place of Origin: Guangdong, China Model Number: TM030XDHG30 Brand Name: Chance Size: 3 inch Display type: TFT Resolution:  480*480 Interface:  RGB 24bit+SPI Contrast Ratio:  800:1 Pixel Pitch:  0.111×0.111mm Luminance:  450 (Typ.) Driving IC:  HX8369A Outline dimension:  58.01*61.38*2.45 mm Active area:  53.28 *53.28 mm Packaging & Delivery Selling Units: Single item Single package size:   5.8X6.14X0.25 cm Single gr...


Product Detail

Quick Details
Display Size: 3.0
Place of Origin: Guangdong, China
Model Number: TM030XDHG30
Brand Name: Chance
Size: 3 inch
Display type: TFT
Resolution:  480*480
Interface:  RGB 24bit+SPI
Contrast Ratio:  800:1
Pixel Pitch:  0.111×0.111mm
Luminance:  450 (Typ.)
Driving IC:  HX8369A
Outline dimension:  58.01*61.38*2.45 mm
Active area:  53.28 *53.28 mm

Packaging & Delivery

Selling Units: Single item
Single package size:   5.8X6.14X0.25 cm
Single gross weight:  0.020 kg
Package Type:  Plastic box + plastic bag + paper carton Remark: Qty packed depends on various sizes of modules. Customized package is available.

Parameters

Size 3”
Resolution 480(RGB)x480
Technology Type a-si TFT
Pixel Configuration RGB Vertical Stripe
Pixel pitch(mm) 0.111×0.111
Display Mode SFT
Surface Treatment HC
LCM (W x H x D) (mm) 58.01×61.38×2.45 mm
Active Area(mm) 53.28 x 53.28 mm
Connection Type FH26-41S-0.3SHW
LED Numbers 4
Weight (g) 16.9
Interface RGB 24bit+SPI
Color Depth 16.7M
Driver IC HX8369
Pin
Pin No. Symbol I/O Description
1 GND P Ground
2 LED+ P LED light anode
3 LED- P LED light cathode
4 VCC P Power supply for the analog power
5 IOVCC P Power supply for the I/O circuit
6 GND P Ground
7 PCLK I Dot clock signal.
8 DE I data enable
9 HS I Line synchronizing signal.
10 VS I VS signal
11 SDO I Serial data .input
12 SDI I Serial data output
13 CSX I Chip select
14 SCL I Serial Clock
15 D0 I Data bus
16 D1 I Data bus
17 D2 I Data bus
18 D3 I Data bus
19 D4 I Data bus
20 D5 I Data bus
21 D6 I Data bus
22 D7 I Data bus
23 D8 I Data bus
24 D9 I Data bus
25 D10 I Data bus
26 D11 I Data bus
27 D12 I Data bus
28 D13 I Data bus
29 D14 I Data bus
30 D15 I Data bus
31 D16 I Data bus
32 D17 I Data bus
33 D18 I Data bus
34 D19 I Data bus
35 D20 I Data bus
36 D21 I Data bus
37 D22 I Data bus
38 D23 I Data bus
39 LCD_RESET P Reset
40 ID(NC) O No Connection
41 GND P Ground
 \

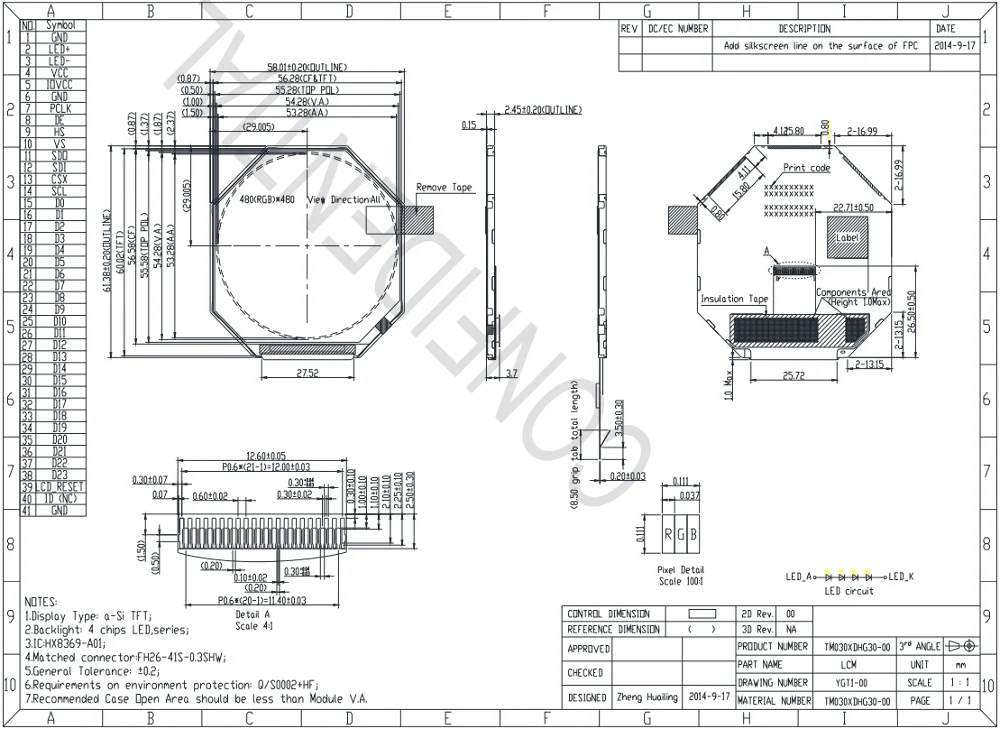

Drawing
\

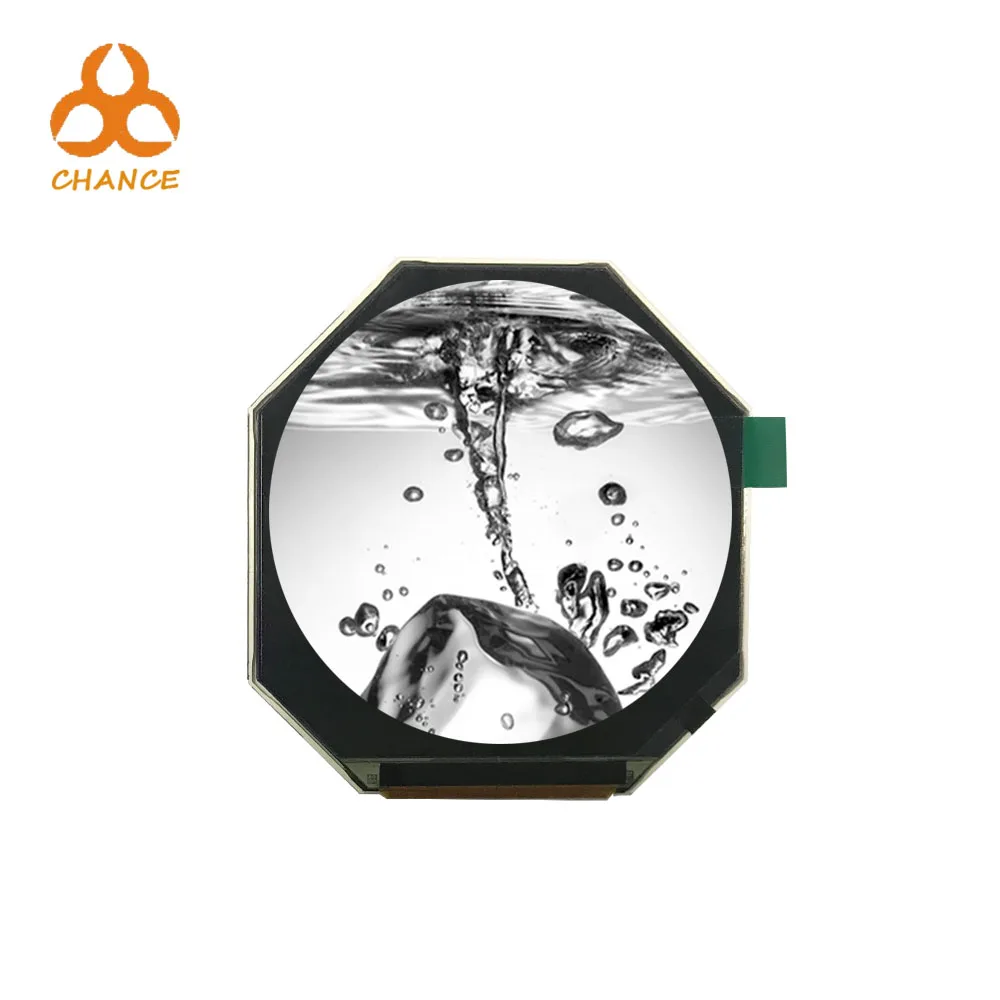

Real Shot
